Operations

Terminal Storage

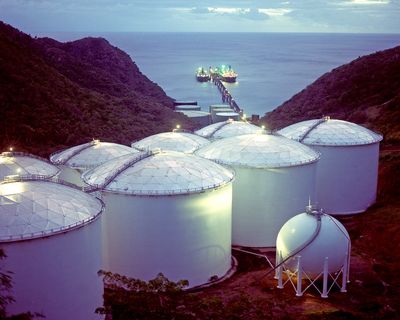

The St. Eustatius terminal is highly recognized in the storage market for delivering high quality services and reliable storage facilities. The facility has a storage capacity of over 2.2 million cubic meters (14+ million barrels) and is a true world-class facility, capable of handling the world’s largest oil tankers.

Tanks: 60

Total Capacity: 14.3 million barrels or 2.274M cubic meters

Crude: 5.2 million barrels or 0.827M cubic meters

Fuel oil: 6.8 million barrels or 1.081M cubic meters

Clean Products: 2.3 million barrels or 0.366M cubic meters

Products: Crude Oil, Distillates, Gasoline, Intermediate Petroleum and Blend Components, Residual Fuels, Condensates

Marine services

Dock/Vessel Data: Six mooring locations

Single Point Mooring (SPM) buoy, servicing vessels up to 520,000 dead weight tons (DWT); Very Large Crude Carriers (VLCCs) and Ultra Large Crude Carriers (ULCCs). Draft is 60 meters or 197 feet. Handling crude and fuel oil with discharge rates up to 75,000 barrels per hour (BPH).

Jetty with two berths, handling vessels up to 177,000 DWT (Suezmax). Draft is 16.7 meters or 55 feet. Capable of handling crude oil, fuel oil, distillates, gasoline, and gasoline components.

Monopile with two mooring locations, servicing vessels up to 80,000 DWT (Aframax). Draft is 14.3 meters or 47 feet. Capable of handling distillates, gasoline and gasoline components.

Floating Hose Station, servicing barges dedicated to bunkering operations. Draft is 7 meters or 23 feet. Capable of handling fuel oil and distillates.
